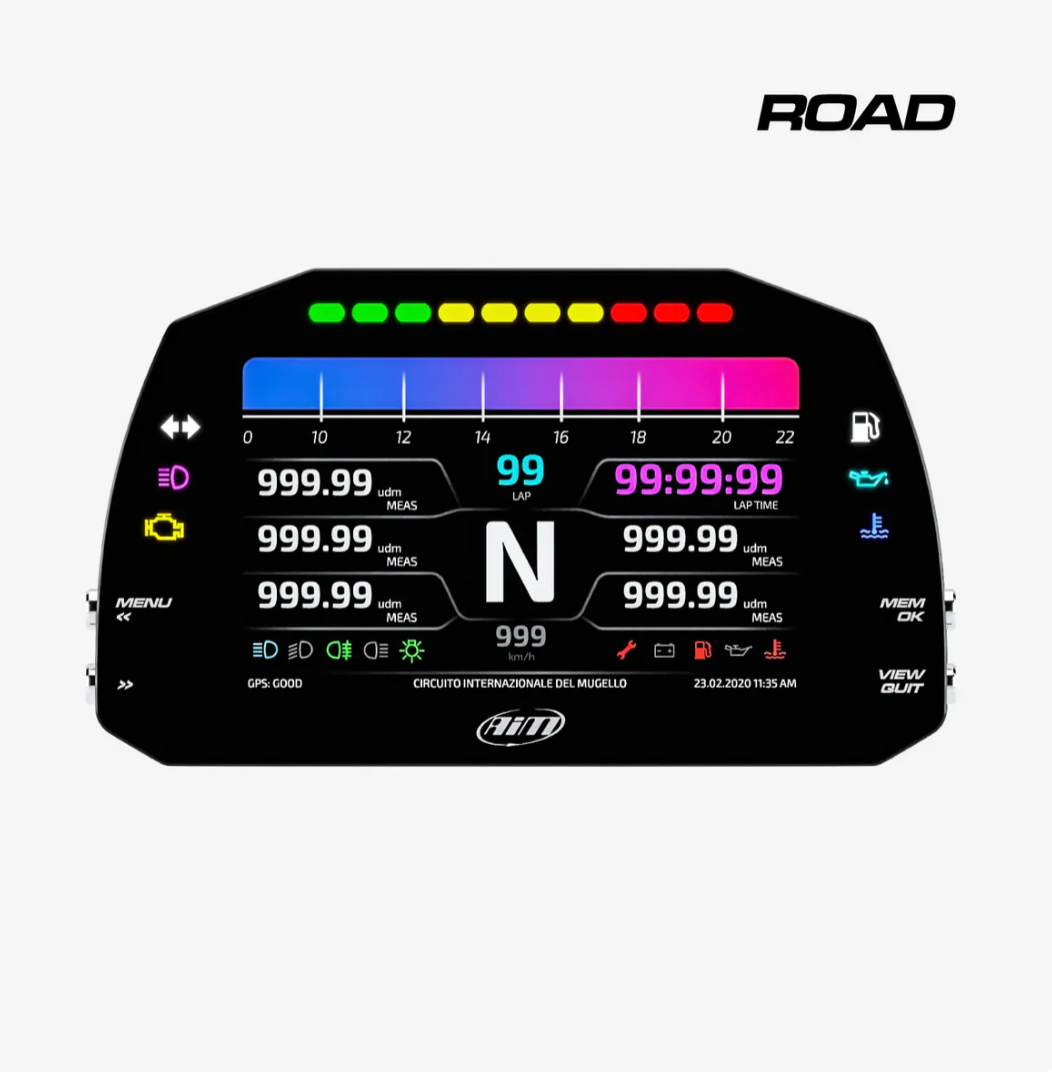

The AiM MXS 1.3 Strada Light is a simplified entry-level version of the MXS 1.3 Strada, targeting users who require less analog input and only need CAN connection to the ECU, offering a more accessible option. It can connect to the vehicle's ECU via OBDII or K-Line CAN, compatible with over 1,000 ECUs. The standard version does not include data logging functionality; data logging requires an additional Strada Logger extension kit.

Key Specifications:

• Model (SKU): MXS-SIL
• - Screen: 5-inch TFT color display, 800 x 480 resolution, 600:1 contrast ratio, 700 cd/m² brightness – 1,100 lumens
• - Ambient light sensor: present
• - Warning lights: 6 adjustable RGB LEDs
• - Shift Light: 10 built-in adjustable RGB LEDs
• - Analog input: 4 adjustable groups, up to 500Hz
• - External video input: 1 PAL-NTSC input
• - CAN connection: 2 groups, supporting the second CAN group
• - ECU connectivity: CAN or K-Line, compatible with over 1,000 ECU types.
• - Expandable modules: GPS module, channel expansion module, TC Hub (K-type thermocouple), Lambda controller, SmartyCam
• - Body: Anodized aluminum alloy, metal buttons
• - Connectors: 1 set of AMP connectors 1 set of binder connectors
• - Current consumption: 400mA
• - Dimensions: 169.4 x 97 x 33.2mm; Weight: 460g
• - Waterproof rating: IP65
